Stave Milling M

  • Ultra compact robotized machine
  • Stave rectification after seasonning
  • Wood cost saving and reduction of scrap material
  • Automatic clamping, referencing determination and measurement of the milling cutters’s placement

Technical characteristics of the stave milling machine

Speed

Less than 20 seconds/stave

Machine dimension

1.5m x 3m

Brushless motor

2-AXIS

Milling spindle

 2

Components parts of the milling robot system

  • Brushless motor
  • 2 milling spindles
  • Laser measurement
  • Safety light curtain

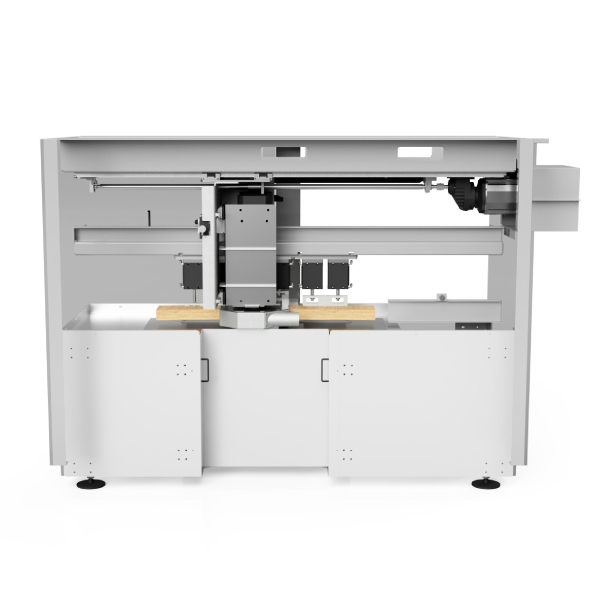

stave milling robotized machine

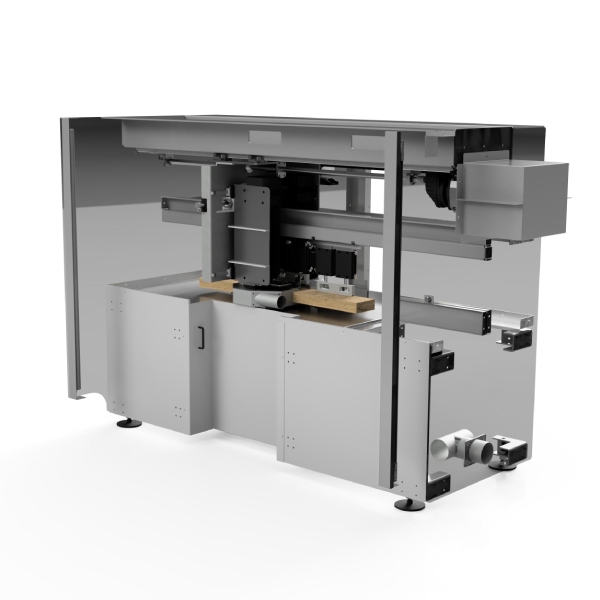

automatic milling machine clamping

Operation of the milling machine

  • Installation of the stave by the operator
  • Automatic clamping and referencing
  • Determination and automatic measurement of the placement of the milling cutters
  • Automatic start of the machining cycle
  • Release of the stave
