Non Stop Front And Back Labeller –
- The labeller allows flat products to be glued on both sides at the same time
- The automatic labeller gives possibility to apply label on irregularly shaped packaging
- Deposit on : flat bottle, eleptical bottle, round bottle in option

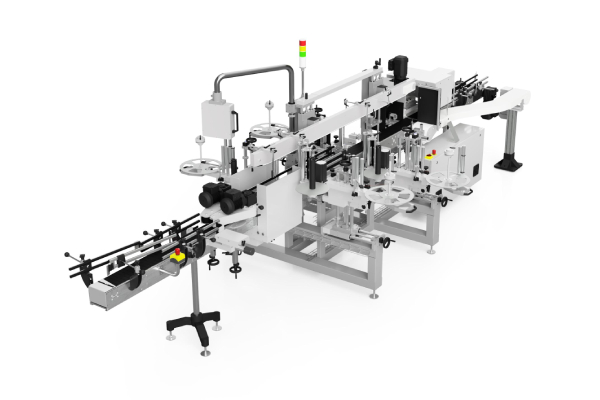

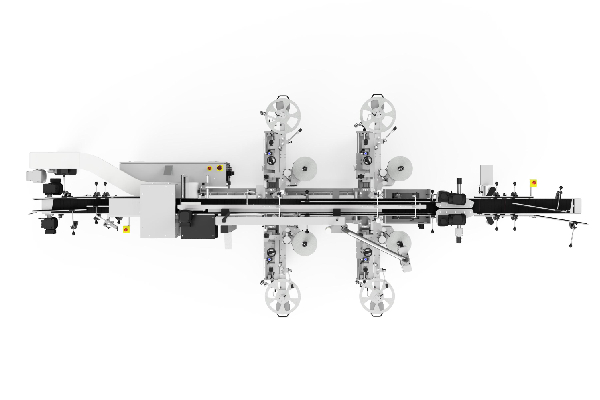

Technical characteristics of the flat and round bottle labelling machine
![](https://www.u2robotics.com/wp-content/uploads/2022/07/speed-industrial-machine-70x70.png)
Performance
Up to 70/100/120 (60/90) ppm
![](https://www.u2robotics.com/wp-content/uploads/2022/07/labelling-packaging-1-70x70.png)
Bottle
Flat (round)
![](https://www.u2robotics.com/wp-content/uploads/2022/07/robot-industrial-machine-70x70.png)
Head
4
![](https://www.u2robotics.com/wp-content/uploads/2022/07/dimension-industrial-machine-70x70.png)
Roll diameter
300/400
![](https://www.u2robotics.com/wp-content/uploads/2022/07/size-product-70x70.png)
Labelling size
160/240
![](https://www.u2robotics.com/wp-content/uploads/2022/07/material-machine-robot-bottle-70x70.png)
Material
PE,PET etc.

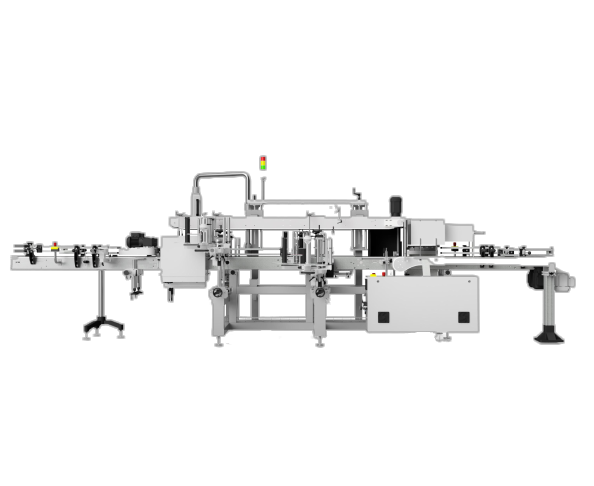

– Components of the labelling machine for round and flat plastic bottle –
- One separator
- One conveyor
- One top conveyor
- Four labelling heads
- Four applicators
![automatic labeller for bottle](https://www.u2robotics.com/wp-content/uploads/2022/10/automatic-labeller-for-bottle.jpg)
![flat and round bottle labelling machine](https://www.u2robotics.com/wp-content/uploads/2022/10/flat-and-round-bottle-labelling-machine.jpg)
– Standard options of the automatic labeller for bottle –
- Positionning chain
- Positionning slide
- Roto option
- Printer
- Vision system
- Automatic changeover
- Expanded controler HMI 10°
